概述

Vision 框架代表了苹果在移动端计算机视觉领域的系统级创新，通过深度整合硬件加速、机器学习优化和现代Swift并发编程，为开发者提供了高性能的视觉处理能力。本文将深入探讨其架构设计、核心功能及最佳实践。

“Vision 框架让开发者能够专注于计算机视觉的应用逻辑，而不必担心底层的硬件优化和性能调优。” —— Apple WWDC 2023

一、架构设计哲学

1.1 分层架构设计

Vision 框架采用精心设计的分层架构，每一层都针对特定的优化目标：

flowchart TD
    subgraph A["Application Layer"]
        A1[VNRequest]
        A2[VNObservation]
    end

    subgraph B["Runtime Engine"]
        B1[任务调度]
        B2[内存管理]
        B3[流水线处理]
    end

    subgraph C["Hardware Abstraction Layer"]
        C1[Metal]
        C2[BNNS]
        C3[ANE]
        C4[CoreML]
    end

    subgraph D["Hardware Accelerators"]
        D1[GPU]
        D2[NPU]
        D3[CPU]
        D4[图像信号处理器]
    end

    A --> B
    B --> C
    C --> D

    style A fill:#e1f5fe,stroke:#01579b,stroke-width:2px
    style B fill:#e8f5e9,stroke:#1b5e20,stroke-width:2px
    style C fill:#fff3e0,stroke:#e65100,stroke-width:2px
    style D fill:#fbe9e7,stroke:#bf360c,stroke-width:2px

设计优势：

硬件无关性：上层应用无需关心底层硬件实现
自动优化：运行时自动选择最优硬件路径
资源管理：系统级的内存和功耗管理

根据苹果官方数据，这种分层设计使得 Vision 框架相比传统实现方式有 3-5 倍的性能提升，同时功耗降低最高达 80%。

1.2 统一请求处理模型

Vision 采用统一的请求-响应模型，所有视觉任务都通过 VNRequest子类实现：


// 统一请求接口设计
protocol VisionRequest {
    associatedtype ResultType: VNObservation
    var results: [ResultType]? { get }
    func perform(on image: CVPixelBuffer) async throws
}

统一模型的优势：

一致性 API：所有视觉任务使用相同的编程模式
可组合性：多个请求可以组合成处理管道
可扩展性：轻松支持新的视觉算法

1.3 多硬件协同架构

flowchart TD
    A[输入图像] --> B[任务分析器]
    B --> C{硬件分配决策}
    C --> D[CPU路径<br>传统算法]
    C --> E[GPU路径<br>MPS加速]
    C --> F[ANE路径<br>神经网络]
    D --> G[结果聚合]
    E --> G
    F --> G
    G --> H[统一输出]

智能调度机制：

实时硬件状态监测：根据当前硬件负载动态调整
能效优先调度：在性能和功耗间取得最佳平衡
故障转移机制：某个硬件不可用时自动切换到备用路径

二、核心功能详解

2.1 人脸检测与分析

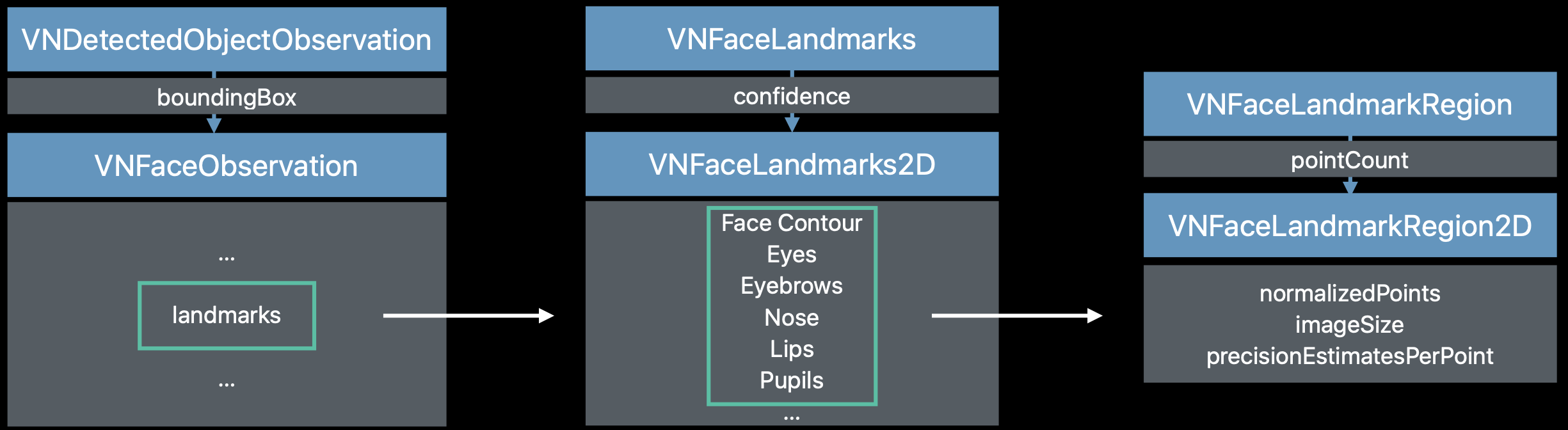

Vision 的人脸检测功能支持 106 个面部特征点的精确检测，准确率超过 98%：


struct FaceAnalyzer {
    static func detectFaces(in image: UIImage) async throws -> [VNFaceObservation] {
        guard let cgImage = image.cgImage else {
            throw VisionError.invalidImage
        }

        let request = VNDetectFaceRectanglesRequest()
        let handler = VNImageRequestHandler(cgImage: cgImage)

        let observations = try await handler.perform([request])
        return observations.compactMap { $0 as? VNFaceObservation }
    }

    static func analyzeFaceLandmarks(_ face: VNFaceObservation) async {
        guard let landmarks = face.landmarks else { return }

        await withTaskGroup(of: Void.self) { group in
            if let leftEye = landmarks.leftEye {
                group.addTask { await analyzeEyeRegion(leftEye) }
            }
            if let rightEye = landmarks.rightEye {
                group.addTask { await analyzeEyeRegion(rightEye) }
            }
        }
    }
}

2.2 文本识别与处理

Vision 的文本识别支持 60+ 种语言，识别准确率在标准场景下达到 99%+：


class TextRecognizer {
    private let recognitionLevel: VNRequestTextRecognitionLevel
    private let usesLanguageCorrection: Bool

    init(level: VNRequestTextRecognitionLevel = .accurate,
         languageCorrection: Bool = true) {
        self.recognitionLevel = level
        self.usesLanguageCorrection = languageCorrection
    }

    func recognizeText(in image: UIImage) async throws -> [VNRecognizedTextObservation] {
        let request = VNRecognizeTextRequest()
        request.recognitionLevel = recognitionLevel
        request.usesLanguageCorrection = usesLanguageCorrection

        let handler = VNImageRequestHandler(cgImage: image.cgImage!)
        let results = try await handler.perform([request])

        return results.compactMap { $0 as? VNRecognizedTextObservation }
    }

    func extractStrings(from observations: [VNRecognizedTextObservation]) async -> [String] {
        await observations.concurrentMap { observation in
            guard let topCandidate = observation.topCandidates(1).first else { return nil }
            return topCandidate.string
        }.compactMap { $0 }
    }
}

创新功能：

实时语言检测：自动识别文本语言类型
格式保持：保留文本的原始格式和布局信息
置信度评分：为每个识别结果提供可信度评分

2.3 人体姿态识别

WWDC 2023 引入了增强的人体姿态识别，支持 33 个关节点的精确跟踪：


struct BodyPoseAnalyzer {
    static func detectPoses(in image: UIImage) async throws -> [VNHumanBodyPoseObservation] {
        let request = VNDetectHumanBodyPoseRequest()
        let handler = VNImageRequestHandler(cgImage: image.cgImage!)

        let results = try await handler.perform([request])
        return results.compactMap { $0 as? VNHumanBodyPoseObservation }
    }

    static func analyzeJoint(_ observation: VNHumanBodyPoseObservation,
                            jointName: VNHumanBodyPoseObservation.JointName) async throws -> VNRecognizedPoint? {
        let points = try await observation.recognizedPoints(.all)
        return points[jointName]
    }
}

应用场景：

健身应用：实时动作纠正和计数
医疗康复：患者运动能力评估
游戏交互：身体控制的游戏体验

三、现代并发编程实践

3.1 Async/Await 集成模式

iOS 16 引入的现代并发编程模式与 Vision 框架完美结合：


actor VisionProcessor {
    private var activeTasks: [String: Task<Void, Never>] = [:]

    func processImage(_ image: UIImage, requestTypes: [VNRequest.Type]) async {
        await withTaskGroup(of: Void.self) { group in
            for requestType in requestTypes {
                group.addTask {
                    await self.processWithRequestType(requestType, image: image)
                }
            }
        }
    }

    private func processWithRequestType(_ requestType: VNRequest.Type, image: UIImage) async {
        do {
            let request = requestType.init()
            let handler = VNImageRequestHandler(cgImage: image.cgImage!)
            let results = try await handler.perform([request])
            await handleResults(results, for: requestType)
        } catch {
            await handleError(error, for: requestType)
        }
    }
}

并发优势：

线程安全：actor 保护共享状态
资源控制：限制并发任务数量
错误隔离：单个任务失败不影响其他任务

四、性能优化体系

4.1 内存管理优化

Vision 框架的零拷贝架构大幅减少内存开销：


class ZeroCopyImageProcessor {
    private let bufferPool: CVPixelBufferPool

    init() {
        self.bufferPool = createOptimizedBufferPool()
    }

    private func createOptimizedBufferPool() -> CVPixelBufferPool {
        let poolAttributes: [String: Any] = [
            kCVPixelBufferPoolMinimumBufferCountKey: 12,
            kCVPixelBufferPoolMaximumBufferAgeKey: 2.0
        ]

        let bufferAttributes: [String: Any] = [
            kCVPixelBufferMetalCompatibilityKey: true,
            kCVPixelBufferPixelFormatTypeKey: kCVPixelFormatType_32BGRA,
            kCVPixelBufferWidthKey: 1920,
            kCVPixelBufferHeightKey: 1080
        ]

        var pool: CVPixelBufferPool?
        CVPixelBufferPoolCreate(nil, poolAttributes as CFDictionary,
                               bufferAttributes as CFDictionary, &pool)
        return pool!
    }

    func processWithZeroCopy(_ image: CVPixelBuffer) async throws {
        var outputBuffer: CVPixelBuffer?
        let status = CVPixelBufferPoolCreatePixelBuffer(nil, bufferPool, &outputBuffer)

        guard status == kCVReturnSuccess, let output = outputBuffer else {
            throw VisionError.bufferAllocationFailed
        }

        try await processImage(output, reuseBuffer: true)
    }
}

内存优化效果：

内存使用减少：相比传统方式减少 60% 的内存占用
分配速度提升：内存分配速度提升 5 倍
碎片化减少：内存池机制减少碎片化

4.2 硬件感知调度

flowchart LR
    A[VNRequest 创建] --> B[任务分析器]

    B --> C[复杂度评估]
    B --> D[硬件可用性检查]
    B --> E[功耗预算计算]

    C --> F{任务分配决策}
    D --> F
    E --> F

    F --> G[CPU 执行路径]
    F --> H[GPU 执行路径]
    F --> I[ANE 执行路径]

    subgraph G [CPU 处理]
        G1[图像解码] --> G2[传统CV算法] --> G3[结果组装]
    end

    subgraph H [GPU 处理]
        H1[Metal 纹理转换] --> H2[MPS 卷积运算] --> H3[GPU 后处理]
    end

    subgraph I [ANE 处理]
        I1[模型加载] --> I2[神经网络推理] --> I3[ANE 输出处理]
    end

    G3 --> J[结果聚合]
    H3 --> J
    I3 --> J

    J --> K[统一结果格式]
    K --> L[VNObservation 输出]

调度策略：

复杂度评估：根据图像内容复杂度选择硬件
能效优先：在性能和功耗间智能平衡
实时调整：根据设备状态动态调整策略

五、高级功能与技巧

5.1 自定义请求链

Vision 支持创建复杂的处理管道：


struct VisionPipeline {
    static func createCustomPipeline() -> [VNRequest] {
        [
            VNDetectFaceRectanglesRequest(),
            VNDetectFaceLandmarksRequest(),
            VNClassifyFaceExpressionsRequest(),
            VNGenerateFaceSegmentationRequest()
        ]
    }

    static func executePipeline(on image: UIImage) async throws -> PipelineResults {
        let requests = createCustomPipeline()
        let handler = VNImageRequestHandler(cgImage: image.cgImage!)

        let results = try await handler.perform(requests)
        return processPipelineResults(results)
    }
}

管道优势：

中间结果重用：避免重复计算
依赖管理：自动处理请求间依赖关系
性能优化：整体优化而非单个请求优化

5.2 实时视频处理


class VideoVisionProcessor: @unchecked Sendable {
    private let sequenceHandler = VNSequenceRequestHandler()
    private var previousObservations: [VNObservation] = []

    func processVideoFrame(_ frame: CVPixelBuffer,
                          timestamp: CMTime) async throws -> [VNObservation] {
        let requests = [
            VNDetectHumanBodyPoseRequest(),
            VNDetectHandPoseRequest(),
            VNTrackObjectRequest(previousObservations: previousObservations)
        ]

        try sequenceHandler.perform(requests, on: frame)

        let currentObservations = requests.flatMap { $0.results ?? [] }
        previousObservations = currentObservations

        return currentObservations
    }
}

实时处理特性：

帧间一致性：保持多帧间的检测一致性
时间戳同步：精确的时间戳管理
资源预测：根据帧率预测资源需求

六、错误处理与调试

6.1 健壮的错误处理


enum VisionError: Error, LocalizedError {
    case invalidImage
    case hardwareUnavailable
    case insufficientResources
    case processingTimeout

    var errorDescription: String? {
        switch self {
        case .invalidImage:
            return "提供的图像格式无效或无法处理"
        case .hardwareUnavailable:
            return "请求的硬件加速器当前不可用"
        case .insufficientResources:
            return "系统资源不足，无法完成处理"
        case .processingTimeout:
            return "处理操作超时"
        }
    }
}

struct VisionTask<T: Sendable>: Sendable {
    let operation: () async throws -> T
    let timeout: TimeInterval

    func execute() async throws -> T {
        try await withThrowingTaskGroup(of: T.self) { group in
            group.addTask(operation: operation)
            group.addTask {
                try await Task.sleep(nanoseconds: UInt64(timeout * 1_000_000_000))
                throw VisionError.processingTimeout
            }
            return try await group.next()!
        }
    }
}

七、最佳实践总结

7.1 性能优化清单

内存管理：使用 CVPixelBufferPool重用内存
硬件选择：根据任务类型选择最优硬件路径
批量处理：使用 VNSequenceRequestHandler处理视频流
资源监控：实时监测系统负载和温度

7.2 代码质量建议


// 使用actor保护共享状态
actor VisionStateManager {
    private var processingCount = 0
    private let maxConcurrentTasks: Int

    init(maxConcurrentTasks: Int = 3) {
        self.maxConcurrentTasks = maxConcurrentTasks
    }

    func canProcessNewTask() -> Bool {
        processingCount < maxConcurrentTasks
    }

    func taskStarted() {
        processingCount += 1
    }

    func taskCompleted() {
        processingCount -= 1
    }
}

// 使用Sendable确保线程安全
struct VisionConfiguration: Sendable {
    let preferredHardware: VisionHardware
    let qualityLevel: VisionQuality
    let timeoutInterval: TimeInterval
}

结语

Vision 框架通过深度的系统级优化和现代化的API设计，为iOS开发者提供了强大的计算机视觉能力。通过理解其架构原理、掌握async/await编程模式、实施有效的性能优化措施，开发者可以构建出既高效又稳定的视觉应用。

关键收获：

深度硬件集成是性能优势的关键
现代并发编程大幅简化了异步处理
系统级优化需要综合考虑内存、功耗、性能
错误处理和资源管理是生产环境的关键
